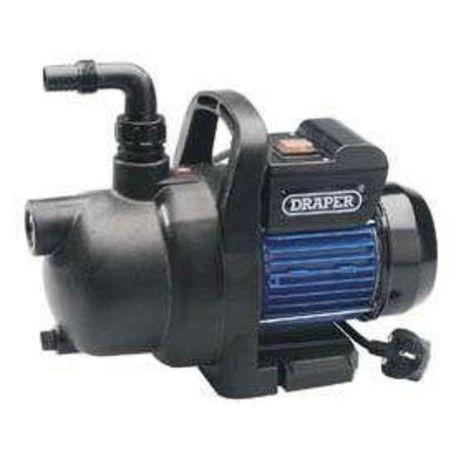

This self-priming pump with 25mm output aperture is suitable for home and garden applications. It has a waterproof on/off switch, thermal overload protection, long life double insulated impellers of corrosion and rustproof construction.



Supplied complete with one 25mm diameter output elbow and fitted with a BS approved non-rewireable 3 pin moulded plug and 1.5m of cable. These pumps can be used for extracting water from water butts for watering the garden.



For this application they would be used outside of the water butt using a suction tube to draw water from the water butt. The pump would then supply water to a length of hose pipe connected to its outlet.

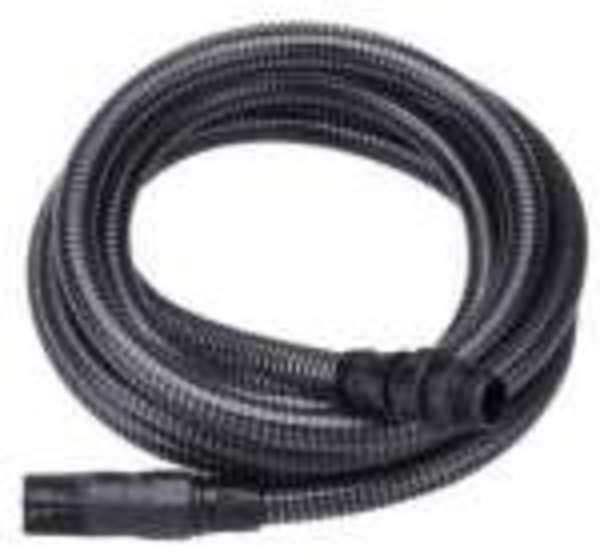

Suitable for: Extracting water from a water butt or underground tank. Moving water between storage tanks. Providing water via a hose to fill buckets and watering cans. Providing medium pressure water for a hose jet, sprinkler or irrigation system. Suction Hoses Solid wall 25mm diameter suction hoses are available to purchase as an option with these pumps. When connected to the inlet side of the pump they can be used to draw water from a tank or pond into the pump. They have a screw connector to fit the pump inlet and their solid wall construction prevents the tube from collapsing when being used for suction.



They are available in two lengths, 4m and 7m. Include a 4m suction hose with the order at an additional £13.99.



Include a 7m suction hose with the order at an additional £18.99.



Draper SP50 Surface Mount Pump

Specification:

Maximum head height ... 40m

Maximum output ... 50L/min (1m head height)

Hose Height - Approx.

Output ... 2m - 50L/min 14m - 40L/min 18m - 30L/min 23m - 20L/min 33m - 10L/min

Motor ... 700W

Output elbow ... 25mm / 1" BSP.

Use ... Surface (dry) mount only.



Draper SP60 Surface Mount Pump

Specification:

Maximum head height ... 48m

Maximum output ... 60L/min (1m head height)

Hose Height - Approx.

Output ... 1m - 60L/min 10m - 50L/min 28m - 20L/min 40m - 10L/min

Motor ... 1000W

Output elbow ... 25mm / 1" BSP.

Use ... Surface (dry) mount only.



Draper SP100 Surface Mount Pump

Specification:

Maximum head height ... 48m

Maximum output ... 100L/min (1m head height)

Hose Height - Approx.

Output ... 1m - 100L/min 16m - 80L/min 28m - 60L/min 37m - 40L/min 44m - 20L/min

Motor ... 1000W

Output elbow ... 25mm / 1" BSP.

Use ... Surface (dry) mount only.
