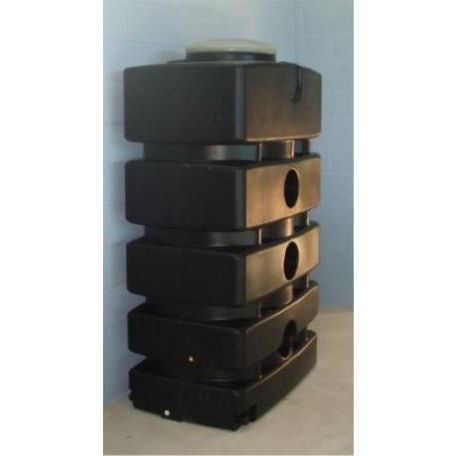

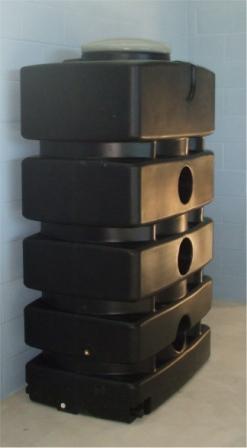

This is a truly versatile tank and can be utilised in a whole range of rainwater harvesting applications.



With a small footprint and a massive capacity of 1500 litres this tank enables large scale rainwater harvesting where underground systems are inappropriate or undesired.



This tank would happily sit along a garden path or installed in a garage or basement.



Due to it’s modular nature it can be installed in plant rooms servicing multiple occupants or businesses.



These tanks offer Rainwater Harvesting solutions where they were thought never possible before.



Two ¾” threaded BSP outlets are provided and can be used for the 3P Pump Connector Kit or to connect ¾” taps. Two 2" DN50 outlet points are also provided making this tank fully inter-connectable. Three marked inlet / overflow points are provided at the top of the tank giving good flexibility with regard to installation.



Specification



Capacity - 1500 litres.

Dimensions - 1200 x 780 x 2000 mm.

Weight - 85 kg.

460 mm lid.

2 x 3/4" threaded BSP for pump and hose connection.

2 x DN50 (2") outlet points. Making this tank fully inter-connectable.

3 x marked inlet / overflow points.

Rotational moulded, seamless Polyethylene.

Removable lid with 460 mm diameter.

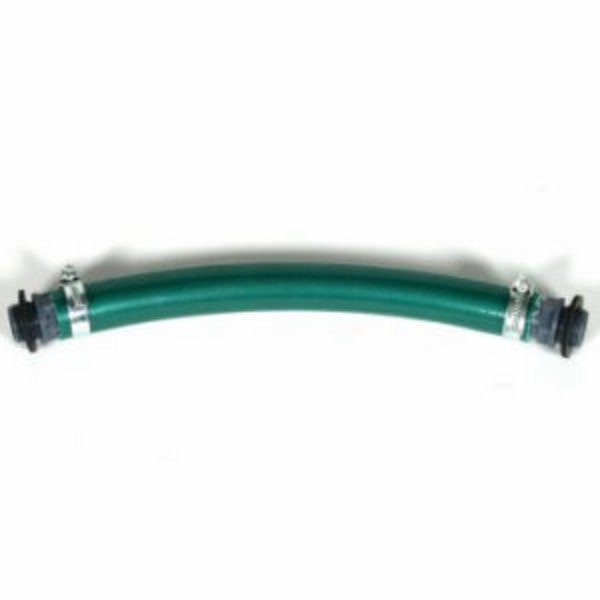

Link kits are available to purchase with the tanks as an option. They link the rain-tanks in your system together. A highly efficient rainwater filter-diverter can also be purchased as an option with the tanks. They can be installed on all UK drainpipes between 65mm and 100mm in width and will divert water flow from the drainpipe into the tanks until the rain tanks are full. Once the tanks are full any further water is directed down the drainpipe to the drain.



These are not just a basic diverter; they also filter and cleanse the rainwater before diverting it sideways into the tank; leaves and debris continue down the drainpipe to the drain. When the rain tanks are full the filter-collector’s unique removable filter cartridge can be taken out in seconds for cleaning, allowing maintenance without the need to dismantle anything.
